Edge: Assign number of intermediate nodes to individual edges

This command specifies the subdivision for individual edges.

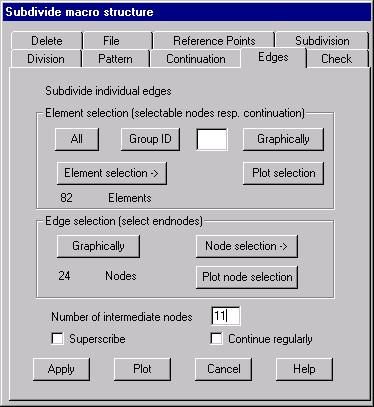

Following dialog shows the available options:

Element selection

Only nodes contained in the given element selection are graphically selectable. Eventually continuation uses this element selection.


Edge selection

All end nodes of the edges have to be selected that shall be assigned the given number of intermediate nodes. For solid elements only nodes of the bottom surface are selectable.

Number of intermediate nodes

Specify the desired number of intermediate nodes for selected edges.


If this option is not marked, edges that have already a number of intermediate nodes assigned to are not  changed.

Continue regularly

With this option set a regular continuation for all adjacent edges of elements will be performed as with command Continuation.
